Habaki

The habaki, or blade collar, has sometimes been called the 'heart' of a Japanese sword and plays two important roles.

The first role is to simply mate with the koiguchi of the saya (scabbard) to ensure the best possible fit and keep the sword securely in its sheathe when not in use. When perfectly matched to the koiguchi, a Katana will be able to be turned upside down without falling out, yet able to be released by a small amount of pressure from the thumb on the hand guard.

The second role is perhaps the most misunderstood. For the habaki acts as a shock absorber, distributing impacts to the blade into the habaki before it travels into the handle, thus a well made and well fitted blade collar contributes to the overall structural integrity of a Katana.

What Habaki are Made from, How Much they Cost and Common Problems

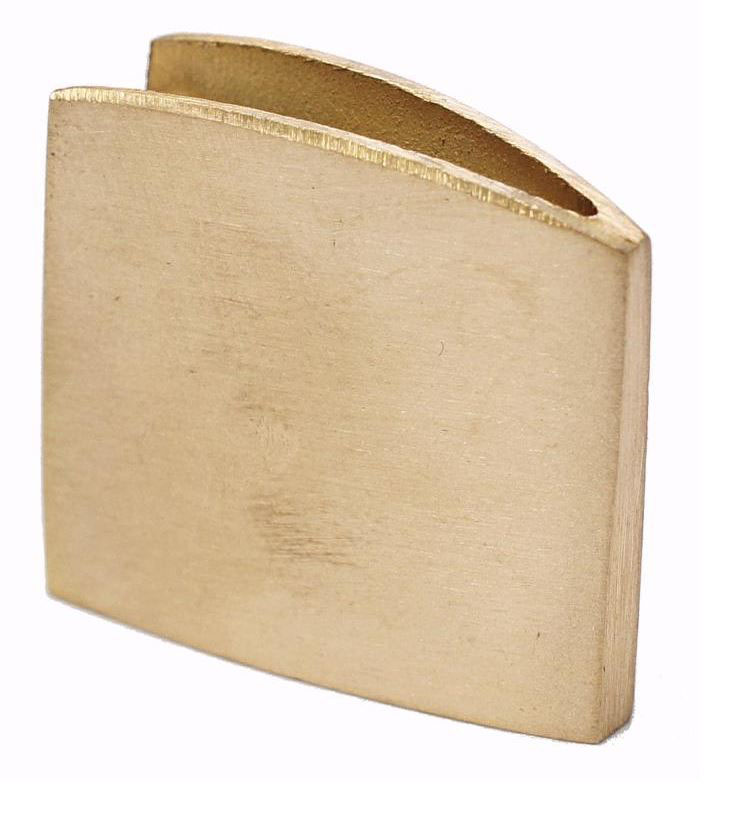

WHAT THEY ARE MADE FROM: Blade collars are usually made from brass, though copper or silver are also possible.Traditionally they were made by bending the colored metal around the blade, and soldered together where the two ends meet at the hamachi.

HOW MUCH THEY COST: Most mass produced 'one size fits all' blade collars are not particularly expensive, typically around $5-10.For example, you can pick up one for $7.95 HERE at Kult of Athena, however they are not really 'one size fits all' and so if you do buy an off the shelf habaki, a LOT of filing work is in order - either the inside of the habaki or the tang itself (or indeed, both).

Traditionally of course, they are individually hand made to perfectly fit a given blade and if made this way typically cost between $300 to $600 to make depending on complexity and materials used.

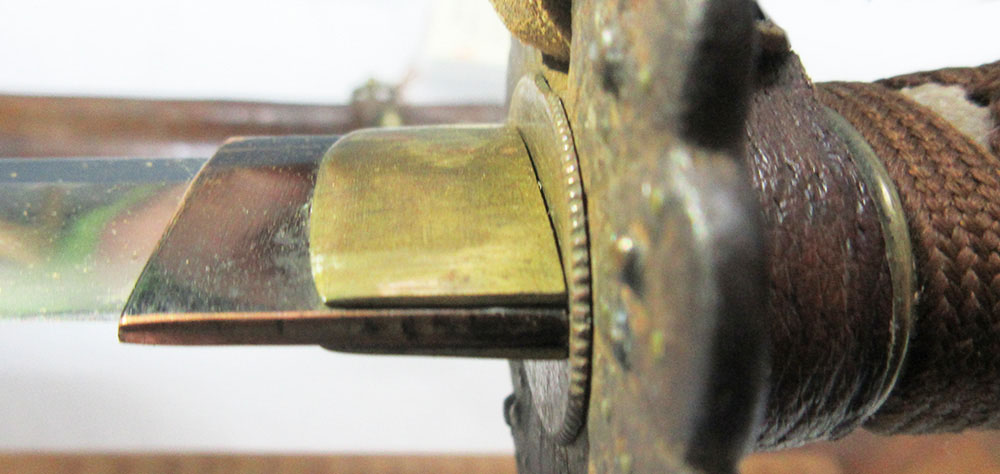

Example of a rare and complex habaki type with a copper core and brass 'jacket'

COMMON PROBLEMS: To keep costs down, most production Katana have mass produced habaki. This one size fits all approach meas that instead of being perfectly fitted to the blade so that the blade collar 'floats' just above the hamachi, the collar is often forced on (sometimes slightly split at the seams in the process), is extremely hard to remove, and its shock absorbing qualities - while still present - do not work as efficiently as they should, causing undue strain on other components when cutting heavy targets.

While clearly not desirable, it is pretty much impossible to avoid with production swords, especially those priced below what it costs to make a custom fitted blade collar - and the only way around it to have one custom made or make on yourself. The video below gives you a rough idea of how to do so if so desired.
